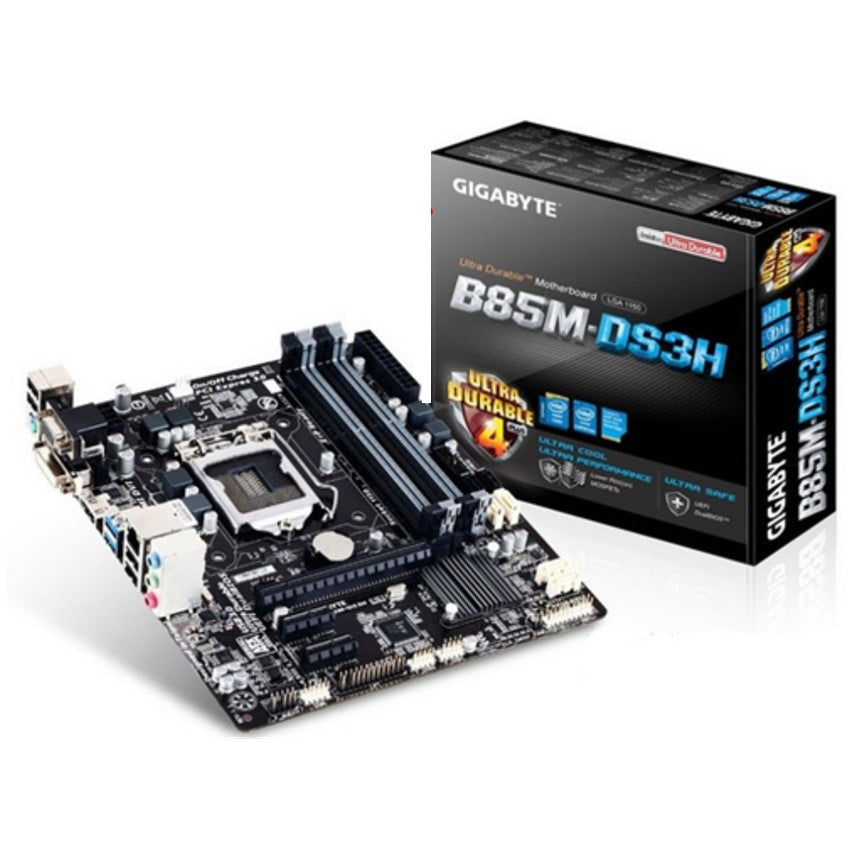

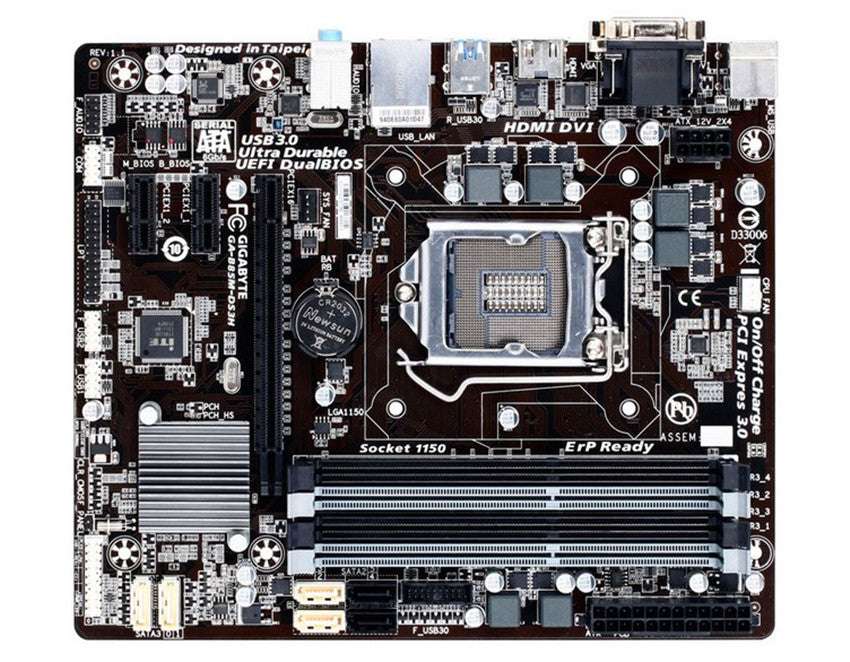

Gigabyte Ga-B85M-Ds3H B85 Motherboard Supports 1150-Pin b85m-f h81 z87
Gigabyte Ga-B85M-Ds3H B85 Motherboard Supports 1150-Pin b85m-f h81 z87
Couldn't load pickup availability
Gigabyte Ga-B85M-Ds3H B85 Motherboard Supports 1150-Pin b85m-f h81 z87
Product Information
Motherboard chip
Integrated chip: sound card/network card
Main chipset: Intel B85
Chipset description: using Intel B85 chipset
Display chip: CPU built-in display chip (requires CPU support)
Audio chip: Integrated Realtek ALC887 8-channel audio chip
NIC chip: Onboard Realtek Gigabit NIC
Processor specifications
CPU type: Core i7/i5/i3/Pentium/Celeron
CPU socket: LGA 1150
CPU description: support Intel 22nm processor
Memory specifications
Memory type: DDR3
Memory slot: 4×DDR3 DIMM
Large memory capacity: 32GB
Memory description: Support dual-channel DDR3 1600/1333MHz memory
Expansion slot
PCI-E standard: PCI-E 3.0
PCI-E slot: 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface: 4×SATA III interface, 2×SATA II interface
I/O interface
USB interface: 4 × USB3.0 interface (2 built-in + 2 backplane), 8 × USB2.0 interface (4 built-in + 4 backplane)
HDMI interface: 1×HDMI interface
External port: 1×DVI interface, 1×VGA interface
PS/2 interface: PS/2 keyboard and mouse universal interface
Parallel serial port: COM interface
Power jack: one 8-pin, one 24-pin power connector
Other interfaces: 1×RJ45 network interface, audio interface
Board type
Motherboard form factor: Micro ATX form factor
Dimensions: 22.6×19.3cm
Software management
BIOS performance:
2 64Mbit flash
Use authorized AMI EFI BIOS
Support DualBIOS
PnP1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Other parameters
Audio: HIFI is not supported
Power supply mode: four-phase
Hardware monitoring:
System voltage detection
CPU/system temperature detection
CPU/system fan speed detection
CPU/system over temperature warning
CPU/system fan failure warning
CPU/system smart fan control
Other features: support Windows 8/7 operating system
