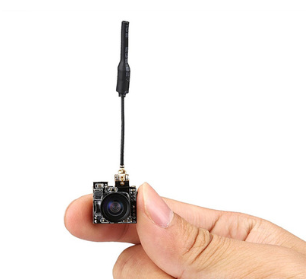

LST-S2 40CH 25MW 5.8G Integrative Map Transfer Machine for Indoor Crossing Machine

LST-S2 40CH 25MW 5.8G Integrative Map Transfer Machine for Indoor Crossing Machine

LST-S2 product introduction:

FPV map transmission and launching machine

Sensor: 1/4" CMOS

Lens: M8 800 TVL lens

Angle: horizontal viewing angle 150° oblique viewing angle 170°

Format: NTSC / PAL (switchable)

Power consumption: 380mA@ 3.7 v

Voltage: 3.6 - -5.5 v

Lens mirror diameter: 2.1 mm FOV 150 ° (horizontal)

Video transmitter

Support video format: NTSC / PAL

Output impedance: 75 ohms

Output signal strength: 23 ~ 24 dbm

Output power: 25 mw

Wireless channel: 40 ch

Working voltage: 3.6 v ~ 5.5 v

Current: 100mA

Audio carrier: 6.5 mhz

Button function

Short press (1 second): Switch channels 1 - 8

Long press (1.5 seconds): switch band A-B-E-F-R

Long press (3 seconds): Switch NTSC / PAL system

NTSC or PAL (blue LED lights = NTSC; blue LEDs do not light = PAL)

main body

Weight: 3.6g

Size: 17 x 13x14.5mm (without antenna)

Features:

The image transmission and launching machine, ultra-small size, ultra-light weight.

Horizontal viewing angle is 150° oblique viewing angle 170°

40 channels combined with 5 frequency bands and 8 frequency points



The package includes:

1 X LST-S2 FPV camera

1 X wire
